China's patient development of dual-use port infrastructure across the Indo-Pacific reveals a calculated strategy to overcome geographic containment. While genuine Chinese naval breakout capabilities remain a decade away at least, Beijing's systematic expansion of maritime logistics nodes exposes both strategic ambitions and current operational limitations.
Our analysis of satellite imagery and infrastructure assessments across four critical facilities suggests 2035 as the earliest plausible timeline for sustained Chinese carrier operations beyond territorial waters. The foundations being laid today through economic coercion and infrastructure capture will determine tomorrow's maritime balance of power.
Two competing visions for the Indo-Pacific maritime order are colliding in slow motion. The United States' Island Chain Strategy leverages geography and alliances to contain Chinese naval expansion within natural chokepoints running from Japan through Taiwan to the Philippines. China's response, the “String of Pearls,” represents a patient circumvention through dual-use commercial infrastructure that masks military utility.
This competition unfolds not through dramatic naval confrontations but through concrete pours and fuel tank construction at ostensibly commercial ports. Each facility represents a potential logistics node in China's future naval network, though current capabilities fall far short of requirements for sustained blue-water operations.
Sri Lanka's Hambantota Port exemplifies China's dual-use development strategy at its most sophisticated. Following the now-infamous debt-trap handover that secured a 99-year lease, Chinese firms have developed infrastructure that suspiciously exceeds commercial requirements.
Satellite imagery analysis reveals massive fuel storage capacity estimated between ~20-30 million gallons, distributed across five large vertical tanks, nine smaller tanks, and ten large spherical containers. The deep-water moorings and extensive docking areas could accommodate carrier battle groups, with peacetime commercial operations providing convenient cover for military-specification infrastructure.
This represents the most advanced node in China's emerging network, yet even Hambantota might require expansion to support sustained carrier operations. The facility's current fuel capacity could support limited deployments but falls at the lower end of the 30-50 million gallons analysts assess as necessary for genuine power projection.
Figure 1: Hambantota Port, Sri Lanka
Source: © 2025 Airbus DS

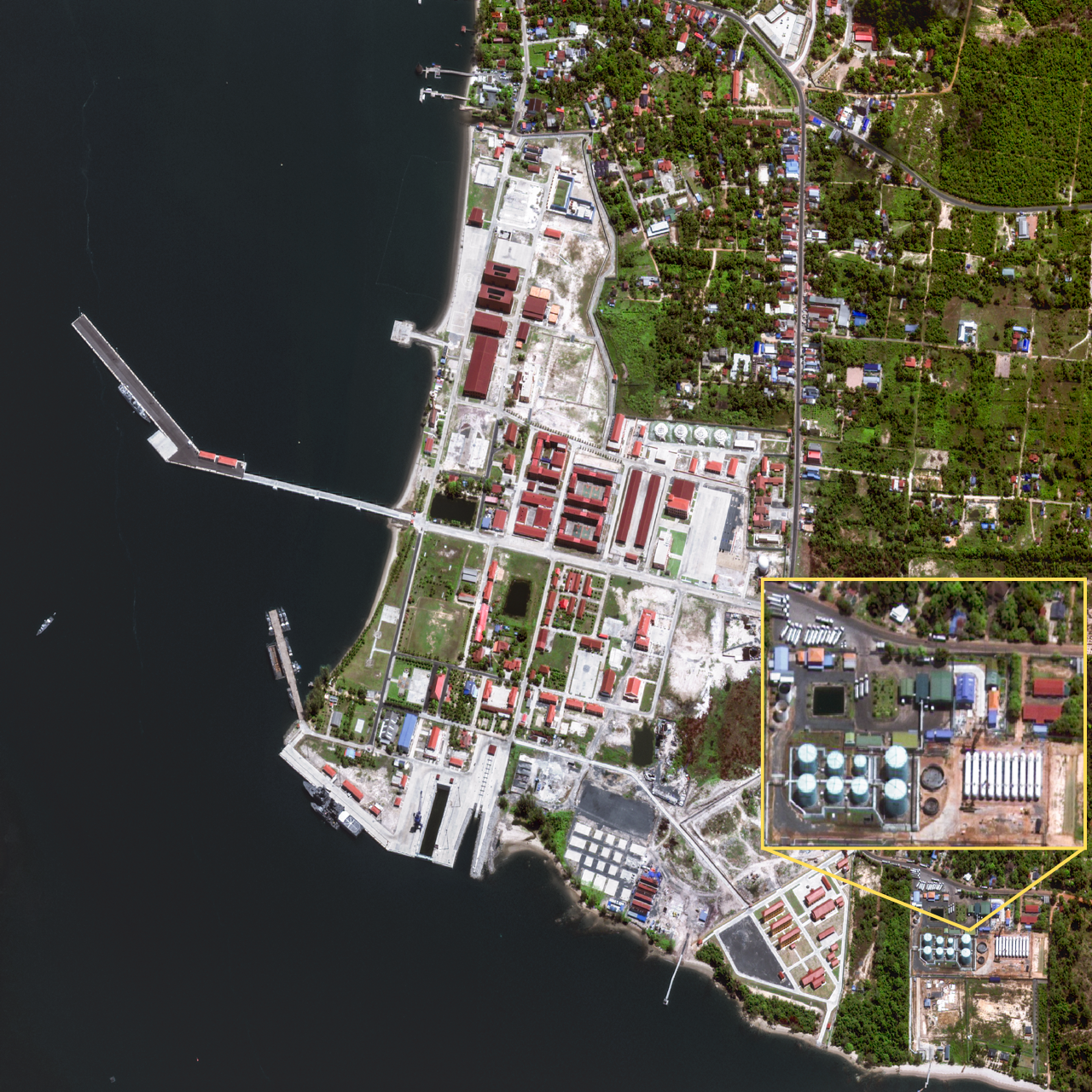

Ream Naval Base demonstrates China's expanding military presence through more traditional channels. Unlike the commercial veneer at Hambantota, Ream's military purpose is undisguised. Recent construction includes substantial piers, dry docks, marine railways, and an estimated ~10-15 million gallons of fuel storage within the PTT Ream Oil Terminal.
The expanding air defense systems and radome arrays suggest preparation for sophisticated military operations. However, infrastructure analysis reveals critical gaps – current fuel capacity remains adequate only for peacetime operations. Supporting carrier battle groups during contingencies would require tripling current storage – a development that would take 3-5 years under optimal conditions. Additionally, further dredging operations are likely needed to support carrier berthing.
Figure 2: Ream Naval Base, Cambodia
Source: GeoEye-1 © 2025 Maxar Technologies
China's facilities at Djibouti and Pakistan's Gwadar Port reveal the current limits of Beijing's naval ambitions. Djibouti's strategic location at the Horn of Africa cannot overcome its infrastructure inadequacies. Despite being China's only dedicated foreign military base, with a 1,120-foot pier completed in recent years, certain aspects still pose challenges for carrier operations. Visible fuel stores suggest a mere ~2.5-5 million gallon capacity, representing a fraction of necessary storage for operational requirements. However, potential underground stores could provide enough to sustain non-constrained operations.
Proximity to the U.S. Camp Lemonnier further complicates the facility's military utility, creating intelligence and logistics vulnerabilities in any contested scenario. Djibouti represents potential rather than capability – a foothold that would require massive investment to transform into a genuine naval base.

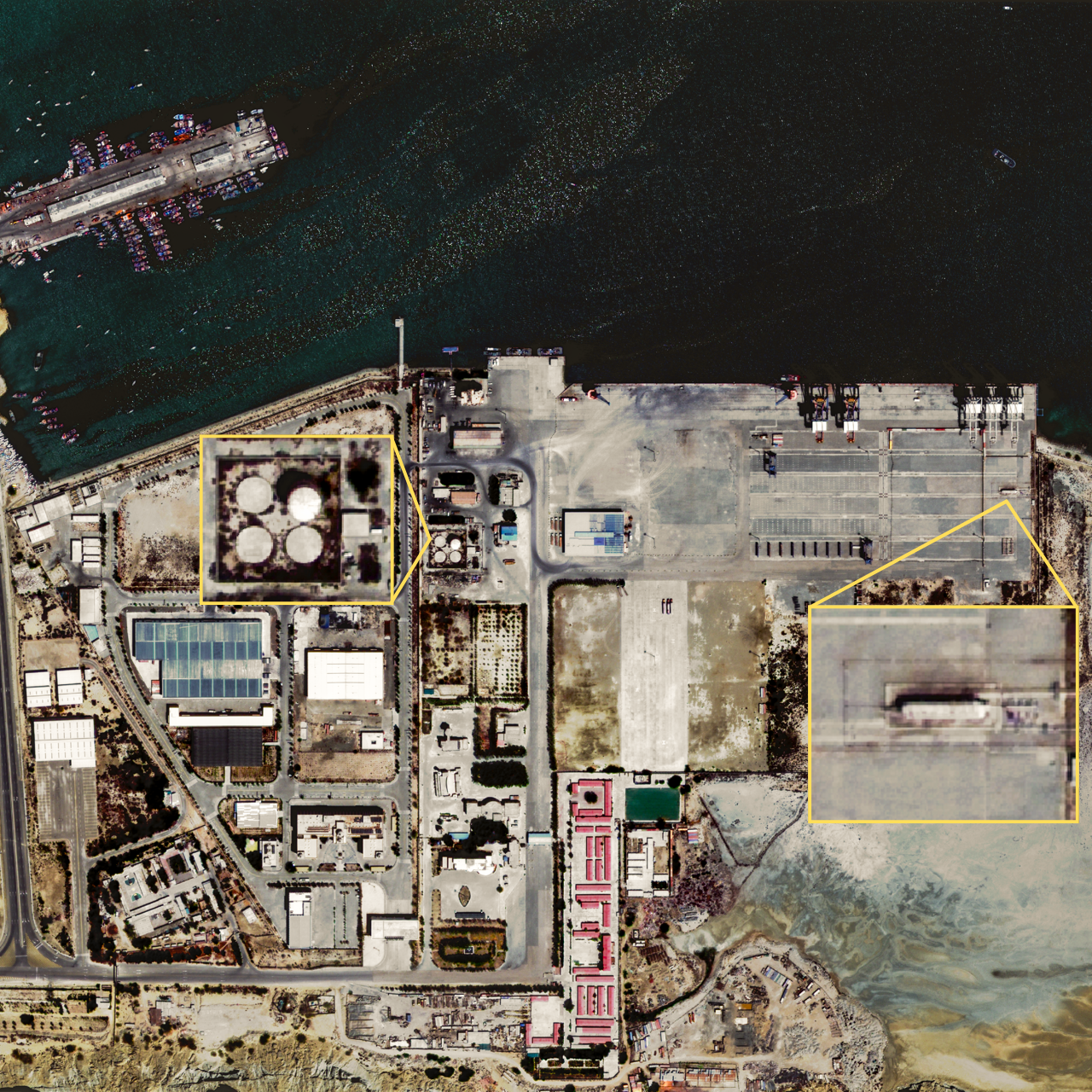

Gwadar Port presents even starker limitations despite grandiose claims about supporting Chinese carriers. Satellite imagery analysis contradicts optimistic assessments, revealing fuel storage of only ~1 million gallons, poor access control, and minimal Chinese support presence. Without major infrastructure expansion, Gwadar remains unsuitable for anything beyond token naval visits.
Figure 3: PLA Support Base, Djibouti
Source: © 2025 Airbus DS
Figure 4: Gwadar Port, Pakistan
Source: GeoEye-1 © 2025 Maxar Technologies
Understanding why 2035 represents the earliest breakout timeline requires examining the logistics demands of China's carrier force. The conventionally-powered Fujian carrier requires frequent refueling compared to nuclear-powered alternatives, creating a tyranny of distance that only robust port infrastructure can overcome.
Each String of Pearls facility would need minimum capabilities including 30-50 million gallons of fuel storage, deep-water berths exceeding 15 meters, sophisticated munitions storage, and advanced repair facilities. Current infrastructure falls dramatically short across most locations, requiring coordinated and highly visible development programs that even optimistic timelines place a decade away.
China's naval breakout potential should be measured in trajectory rather than current capability. While 2035 represents the earliest plausible timeline for meaningful power projection, the foundations being laid today through economic relationships and infrastructure development will determine future strategic options.
Alliance responses must address not just current Chinese naval limitations but the infrastructure and dependency networks that could enable future expansion. This requires competing in the infrastructure space, offering alternative financing to vulnerable nations, and maintaining intelligence focus on dual-use developments that bridge commercial and military purposes.
The patient expansion of logistics nodes represents a vulnerability that patient counter-strategy can exploit. But the window for shaping this competition remains open only as long as concrete remains unpoured and tanks unbuilt. Once infrastructure is in place, strategic options narrow considerably.
Note: Fuel capacity estimates based on satellite imagery analysis using standard commercial and military tank dimensions. Measurements derived from satellite analysis and comparative scaling, unless directly sourced. Satellite imagery dated April-June 2025
